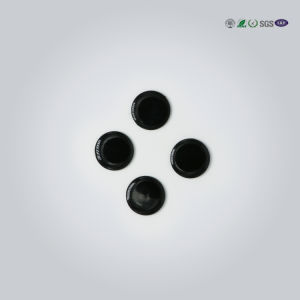

13.56MHz FM11RF08 RFID Laundry Tag for Clothing Washing Tracking

Product Description

Laundry labels can be widely used in clothing cleaning management, factory automation, laundry, high-end garment, school uniforms, special apparel, clothing production management and other radio frequency identification field. Laundry tag has been specially designed for rough environmental conditions in the laundry management industry. The size and performance of the RFID tag meet industry requirements to speed up inventory processes for hotels, hospitals and other institutions. This small tag supports an enhanced garment classification and can contribute to the efficient usage of water and energy.

Polyphenylene sulfide (PPS) is a kind of engineering plastics which is stable, temperature resistant, non-toxic, flame retardant and chemical resistance, which makes it the best choice for laundry tag. It can be used in durable mechanical products and meet the requirements of heat-resistant and fire-resistant. What's more, it's also wildly used in the requirements of corrosion resistance of chemical devices and related fields especially in high temperature, high humidity, high frequency conditions.

Material of silicone, soft Plastic, ABS and customized are availbale.

FM11RF08 interface (ISO/IEC 14443-A)Contactless transmission of data and supply energy (no battery needed)Operating distance: up to 10cm (depending on antenna geometry)Operating frequency: 13.56 MHzFast data transfer: up to 106 kbit/sHalf duplex communication protocol using handshakeEncryption algorithm compatible with M1 StandardTypical transaction time: < 100msEEPROM1024*8bit memoryOrganized in security separated 16 sectors supporting multi application use.User flexible defines assess conditions for each memory blockSecurityMutual three pass authentication High security level data communicationEach sector has its own two secret files for systems using key hierarchies.High ReliabilityEndurance: 100,000 cyclesData retention: 10 years.

Product Characteristics

1. Waterproof
2. Anti-vibration
3. Flame retardant
4. Anti-chemical corrosion

Data sheet

Company introduction

ZDCARD tech Co. Ltd (ZDCARD Group) is based in Shenzhen, a "Special Economic Zone" in China for international and multinational companies and manufacturers. Our total assets exceed 200 million RMB, and have since purchased our own high-tech industrial park with an area of 30,000 m2. ZDCARD is a fully certified in China for industrial production, we also have a Commercial encrypted products production license, ISO Quality Management certification, ISO Environmental Management certification, and also a certificate for high-tech enterprises in Shenzhen. Additionally our R & D has a center with close partnerships with Shenzhen University, Fudan University, Shanghai, GuandongZhongshan University and Central South University.

With 30 years high speed development, from a factory producing plastic cards to later producting RFID products, we began to accumulate experience in using RFID solutions in various fields, and now we are focuses on RFID product design and production line customization.

The annual production capacity has reached 5 billion, is one of the largest and most professional enterprises in south China.
