860 - 960MHz Passive Long Range RFID Tag UHF Alien ISO 18000 - 6C Rectange Shape

Shenzhen ZDCARD Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 860 - 960MHz Passive Long Range RFID Tag UHF Alien ISO 18000 - 6C Rectange Shape from wholesalers

    Buy cheap 860 - 960MHz Passive Long Range RFID Tag UHF Alien ISO 18000 - 6C Rectange Shape from wholesalers
    • Buy cheap 860 - 960MHz Passive Long Range RFID Tag UHF Alien ISO 18000 - 6C Rectange Shape from wholesalers

    860 - 960MHz Passive Long Range RFID Tag UHF Alien ISO 18000 - 6C Rectange Shape

    Ask Lasest Price
    Brand Name : ZDCARD
    Model Number : Inlay RFID UHF Tag
    Certification : ISO 9001, 14001, OHSAS18001
    Price : Negotiation
    Payment Terms : T/T, Paypal, Western Union
    Supply Ability : 100,000,000 pcs per month
    Delivery Time : 6-12 work days
    • Product Details
    • Company Profile

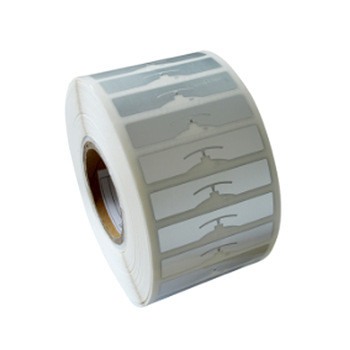

    860 - 960MHz Passive Long Range RFID Tag UHF Alien ISO 18000 - 6C Rectange Shape

    860 - 960MHz Passive Long Range RFID Tag UHF Alien ISO 18000 - 6C Rectange ShapeUHF Alien ISO 18000-6C 860-960MHz Passive Long Range RFID Inlay RFID Tag

    Wet inlay is discontinuous network structure with sticky and smooth surface, which is the essential difference with the dry label. The RFID wet inlay has wide usages, it is usually used in public transportation, access management, electronic ticket, logistics and supply management, manufacturing and assembly, document tracking, library management, animal identity, etc.. For these different areas, we provide wet inlays with different specifications and frequencies. You can select appropriate wet inlay according to your own need.



    Data Sheet


    ChipAline H3
    Model No.AZ9662
    Air Interface ProtocolEPC global UHF Class 1 Gen 2 (ISO 18000-6C)
    Operation Frequency860~960Mhz
    MemoryEPC 96-480 bit, User 512 bit, TID 32 bit
    EPC Memory ContentUnique, randomized number
    Max Read Distance>3 m (10 feet)
    Application Surface MaterialsGlass, Plastic, Wood, Cardboard
    Tag Form FactorDry Inlay/wet inlay/White wet inlay(label)
    Tag MaterialsPrintable coated paper or PET with film
    Attachment MethodGeneral Purpose Adhesive or enclose coated paper
    Antenna Size70*17mm
    Inlay size73.5*21.2mm
    Weight< 1 gram
    Operating Temp-40ºC to +70ºC
    Storage condition20% to 90% RH
    ApplicationsAssets management
    Reusable plastic pallets

    Application


    1. Access security Control
    2. Ticketing
    3. Production line management
    4. warehouse management
    5. sales channel management
    6. valuables management
    7. library management
    8. logistics management


    Product Package


    2500PCS/Roll, 10000pcs/Carton


    Other Chip & Antenna for option :



    860 - 960MHz Passive Long Range RFID Tag UHF Alien ISO 18000 - 6C Rectange Shape
